Different Types of Generators and Their Key Characteristics Explained

Introduction

Generators come in many forms, each designed to meet specific power needs and applications. From portable units for home backup to large industrial machines powering cities, the type of generator you choose depends on how and where it will be used. In this article, we’ll explore the main types of generators,  including AC, DC, portable, standby, and inverter models, and highlight their key characteristics, advantages, and ideal uses.

AC Generators (alternators)

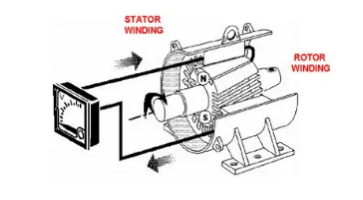

An AC generator, also known as an alternator, is an electrical machine that converts mechanical energy into alternating current electrical energy.

It operates on the principle of electromagnetic induction, where a changing magnetic field induces an electromotive force in a conductor. AC generators are widely used in power generation systems, ranging from small portable devices to large-scale power plants, and are essential for providing electricity to homes, industries, and infrastructure. By utilizing the motion of a rotor within a magnetic field, an AC generator produces current that alternates in direction, making it suitable for efficient transmission and distribution over long distances.

Types of Alternators

Alternators can be classified into various types based on design, application, and mode of operation. Here are the main types of alternators:

Based on Design

Salient Pole Alternator The rotor has large, projecting poles with windings. Designed for low-speed applications (e.g., hydropower plants). High number of poles to match the frequency at lower speeds. Used in hydroelectric plants and other low-speed generation systems.

Non-Salient Pole (Cylindrical Rotor) Alternator: The rotor is cylindrical with windings embedded in slots. Designed for high-speed applications (e.g., thermal and nuclear power plants).Fewer poles due to higher rotational speeds. Used in steam and gas turbines where high speed is required.

Based on Excitation

Separately Excited Alternator: The field winding is powered by an external DC source. Commonly used in large alternators for precise control over excitation.

Based on Output

Single phase Alternator: Produces a single-phase alternating voltage. Used in low-power applications like household generators and small equipment.

Three-phase Alternator: Produces three separate AC outputs with a phase difference of 120°. Widely used in industrial and commercial power generation due to higher efficiency and smoother output.

Based on Application

Based on Cooling

Air-Cooled Alternator: Uses ambient air or forced airflow for cooling. Used in small to medium-sized alternators.

Hydrogen-Cooled Alternator: Uses hydrogen gas as a cooling medium due to its high thermal conductivity. Found in large power plants for efficient cooling.

Water-Cooled Alternator: Uses water circulation to maintain the temperature. Used in very large alternators in hydroelectric and thermal power plants.

Types Of DC Generators

DC generators are electrical machines that convert mechanical energy into direct current electricity. They are widely used in various applications such as battery charging, electroplating, and powering DC motors in industrial and transportation systems. The classification of DC generators is primarily based on the method used to excite their field windings. This design distinction allows them to cater to different operational requirements and load conditions. DC generators can be classified into two main types: Separately Excited DC Generators and Self-Excited DC Generators. Understanding these types helps in selecting the appropriate generator for specific applications, ensuring optimal performance and efficiency.

Separately Excited

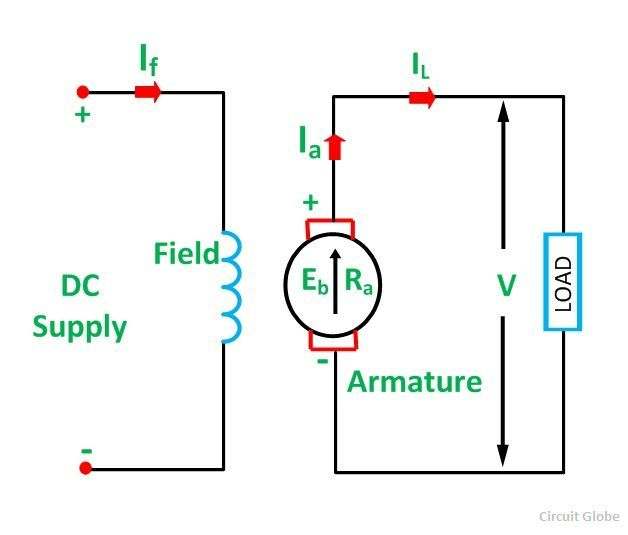

A separately excited DC generator is a type of DC generator in which the field winding is energized by an external DC source, such as a battery or another generator, rather than relying on the generator’s own output. This external excitation provides flexibility and precise control over the magnetic field, allowing better regulation of the output voltage.

The field winding is electrically isolated from the armature winding and connected to an independent DC source. The armature winding is where the EMF is induced by the interaction of the rotor and the magnetic field. The external DC source provides a constant or adjustable current to the field winding, establishing a steady magnetic field.  The rotor (armature) is mechanically rotated in the magnetic field. Electromagnetic induction occurs, generating an EMF in the armature winding. This induced EMF is proportional to the speed of rotation and the strength of the magnetic field.

Voltage Equation

The EMF generated (E) in a separately excited DC generator is given by: E = k x ϕ x N

Where: E = Induced EMF (V), k = Machine constant, ϕ = Magnetic flux per pole (depends on field current supplied externally)(Wb), N = Speed of rotation (in RPM)

The output voltage can be easily controlled by varying the field current using the external source.The generator does not depend on residual magnetism, as the magnetic field is externally controlled. The generated voltage is independent of load conditions, making it highly stable.

Applications: Used in laboratories for testing and research, where precise voltage control is required. Used in applications requiring variable voltage output. Serves as an exciter for alternators or other machines. Ideal for processes requiring steady and adjustable voltage.

Advantages: Excellent control over output voltage. Stable and predictable performance under varying loads. Independent of residual magnetism, ensuring consistent operation.

Disadvantages: Requires an additional DC power source for field excitation. Higher initial and operational costs compared to self-excited generators. Less energy-efficient due to the need for external excitation.

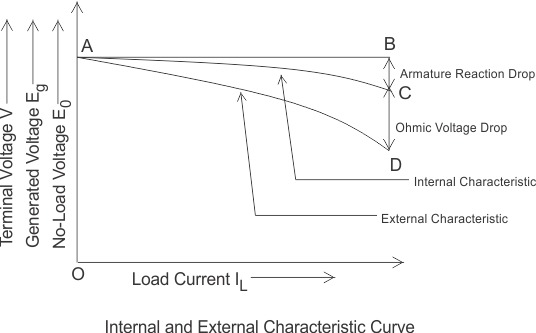

The performance curves of a separately excited DC generator illustrate its behaviour under various operating conditions. These curves help in understanding how the generator’s output voltage, current, power, and efficiency vary with changes in load or excitation.

Key Observations from Performance Curves

Factors Affecting Performance Curves

Self-excited DC generators

A self-excited DC generator is a type of DC generator in which the field winding is powered by the generator’s own output, rather than by an external source. This design utilizes the residual magnetism in the iron core to initiate the generation of voltage. Once the generator starts producing current, it feeds a portion of its output back into the field winding to maintain the magnetic field.

Types of Self-Excited DC Generators

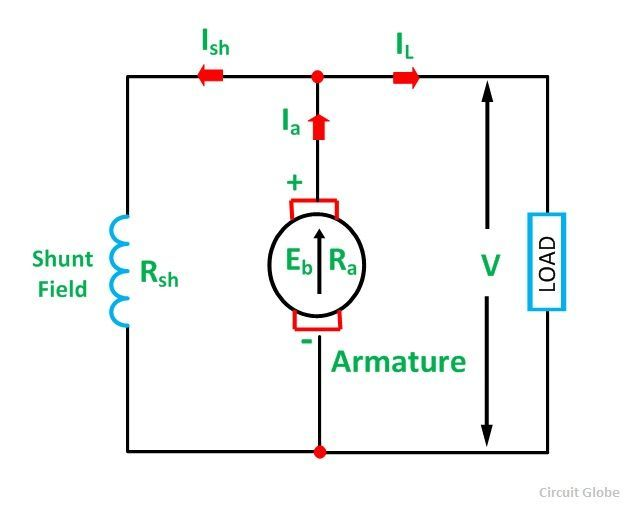

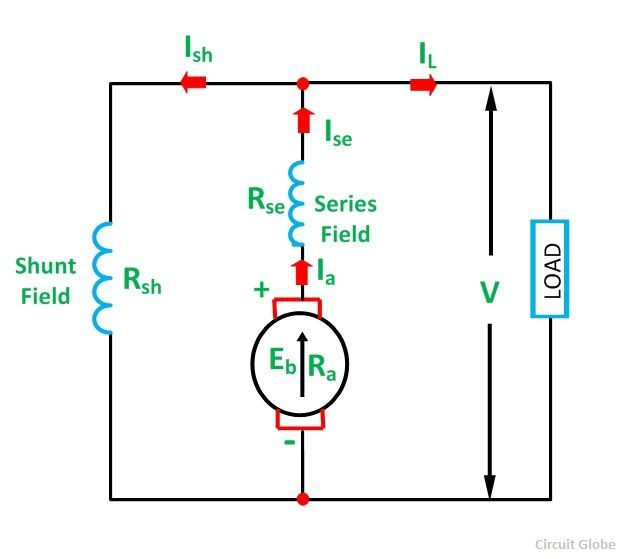

Shunt Wound DC Generator: The field winding is connected in parallel with the armature. Field current is small due to the high resistance of the shunt winding. Voltage remains relatively constant under light to moderate loads. Applications include: Battery charging, excitation of alternators, and small-scale lighting systems.

Series Wound DC Generator The field winding is connected in series with the armature winding. Field current is equal to the load current. Voltage increases with load but drops significantly at high loads due to saturation and armature resistance. Applications include: Electric traction, welding, and applications requiring high starting torque.

Compound Wound DC Generator: Combines both series and shunt windings.

Cumulative Compound: Series and shunt fields assist each other; voltage rises with load.

Differential Compound: Series and shunt fields oppose each other; voltage drops with load.

Applications: Power supply systems, heavy machinery, and applications needing stable voltage over varying loads.

The generator retains a small amount of magnetic flux in its core even when turned off. When the generator starts rotating, this residual magnetism induces a small EMF in the armature. The small EMF drives a current through the field winding, reinforcing the magnetic field. The increased field strength generates a higher EMF, which further increases the field current. This process continues until the magnetic circuit reaches saturation.

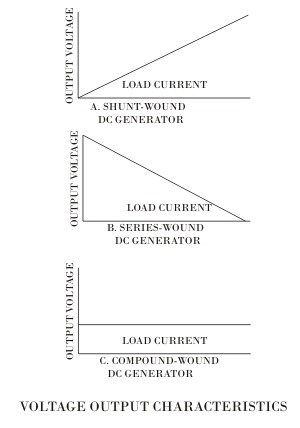

Voltage regulation depends on the type of winding (shunt, series, or compound). Shunt generators maintain steady voltage for small loads, while series and compound generators have load-dependent voltage variations. Shunt generators are suitable for applications with constant load. Series generators perform well in applications with increasing load. Compound generators are versatile, providing good voltage regulation and adaptability to varying loads.

Voltage Equation

The EMF generated (E) in a self-excited generator is: E = k x ϕ x N

Where: k = Machine constant, ϕ = Magnetic flux (depends on field current and residual magnetism)(Wb), N = Speed of rotation (in RPM)

Applications: Shunt Generators: Battery charging, small power systems, and excitation of alternators. Series Generators: Electric traction, cranes, and welding equipment. Compound Generators: Power supply for industrial machinery, heavy-duty equipment, and lighting systems.

Advantages include: No need for an external DC source for field excitation. Simple and cost-effective design. Automatic voltage build-up using residual magnetism.

Disadvantages include: Dependence on residual magnetism, which may degrade over time. Poor voltage regulation in series generators at low loads. Requires careful design to avoid instability in voltage build-up.

In a compound generator, as the load current increases, the armature voltage naturally decreases. This results in a reduction of the magnetic field produced by the shunt winding. However, the increase in load current simultaneously flows through the series winding, enhancing the magnetic field it generates.

This increased magnetic field in the series winding compensates for the reduction in the shunt field’s magnetic strength. As a result, the combined effect maintains a nearly constant output voltage, as depicted in the performance graphs.

Portable Generator:

Portable generators are widely used in various applications and are available in different configurations, depending on power requirements.

They are particularly useful during emergencies or natural disasters when grid power is unavailable. These generators are commonly used in residential settings, small commercial establishments like shops and retail outlets, and at construction sites to power smaller tools.  They are also ideal for outdoor events such as weddings, camping trips, and agricultural purposes, including powering bore wells and drip irrigation systems. Portable generators typically run on diesel or gas to provide short-term electrical power.

Inverter Generator:

An inverter generator operates by using an engine connected to an alternator to produce AC power, which is then converted to DC power using a rectifier. This DC power is subsequently inverted back into clean, stable AC power, ensuring a consistent voltage and frequency.

These generators are ideal for powering sensitive devices like refrigerators, air conditioners, and electronics in boats or automobiles that require precise voltage and frequency control. Utilizes advanced magnetic materials for efficient power generation. Incorporates sophisticated electronic circuits for precise operation.  Produces three-phase power, later converted to stable single-phase output. Delivers a consistent and reliable power supply to sensitive devices. Adjusts engine speed based on the power demand, reducing fuel consumption. Can be calibrated to provide AC power at any required voltage and frequency when paired with the appropriate device. Easy to carry and commonly used in cars, boats, and other mobile applications.

Inverter generators are an excellent choice for powering sensitive equipment, offering quiet operation, portability, and energy efficiency.

Standby Generator:

A standby generator is an electrical system designed to automatically provide power during an outage. It operates through an automatic transfer switch, which signals the generator to start as soon as a power loss is detected. Standby generators are essential for maintaining continuous power supply in critical systems

A Standby Generator: Activates automatically during a power outage without user intervention. Commonly used in safety systems such as standby lighting, elevators, life support equipment, medical facilities, and fire protection systems. Provides reliable and consistent power to protect sensitive devices. Continuously monitors utility power to detect outages immediately. Performs automatic weekly self-tests to ensure proper operation in case of a power loss. Comprises two main parts, an automatic transfer switch and the generator itself. Detects power outages within seconds and starts supplying electricity immediately. Operates using natural gas or liquid propane for a dependable fuel supply. Powered by an internal combustion engine for efficient operation.

Standby generators are a critical solution for uninterrupted power supply, ensuring safety and functionality in residential, commercial, and industrial environments.

Industrial Generators

Industrial generators differ significantly from those used in commercial or residential applications. They are designed to be robust and durable, capable of operating reliably under harsh and demanding conditions.

Industrial generators typically provide power output ranging from 20 kW to 2500 kW, with voltage ratings from 120 V to 480 V, and are available in both single-phase and three-phase configurations. Unlike other types of generators, industrial generators are often highly customized to meet specific requirements.  Their classification is generally based on the type of fuel used to power the engine, which generates the electricity. Common fuels include natural gas, diesel, gasoline, propane, and kerosene. These versatile and high-capacity generators are essential in industrial settings, ensuring continuous and reliable power supply for large-scale operations and critical systems.

Self-Excited Induction Generators:

These generators are commonly used in applications like windmills, where wind energy, a renewable source, is converted into electrical energy.

They operate without an external power supply for excitation, relying instead on capacitors or residual magnetism to generate the required magnetic field.

Externally Excited Induction Generators:

These are used in applications such as regenerative braking systems in cranes, hoists, electric locomotives, and elevators. They require an external power source for excitation, enabling efficient energy recovery and conversion during braking.

Induction generators are versatile and capable of providing power for lighting systems and various tools. They are widely used in renewable energy systems and industrial applications due to their simplicity, reliability, and ability to generate power under varying operating conditions.



---
