The Practical Guide to Producing a Technical Design Report

Introduction :

A solid Technical Design Report (TDR) turns a messy idea into a clear, reviewable plan your team can build with confidence. In this practical guide, you’ll learn what to include, how to structure it, and the common traps to avoid. so your design is easy to understand, approve, and implement.

The technical design report is a formal report that documents all the steps that were taken during the design process, and describes what the completed design is. It should include detailed engineering drawings for manufacture.

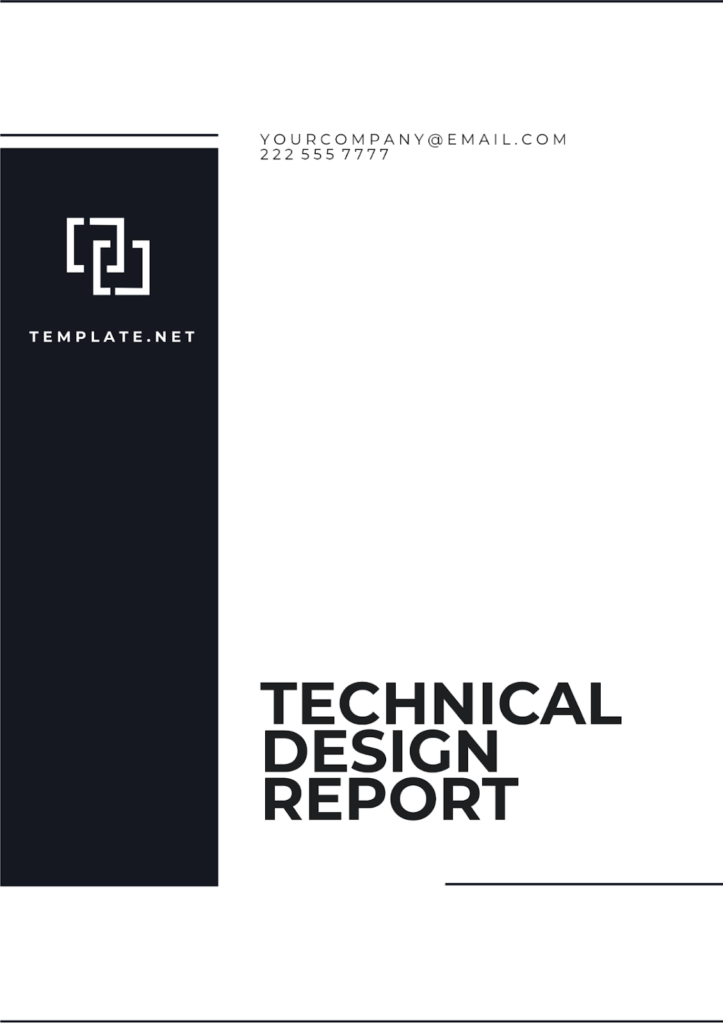

, The Practical Guide to Producing a Technical Design Report

The final technical design report should follow a formal format.

A final technical design report should be presented in a clear, formal, and professional format that reflects standard engineering practice.

Title Page

The report begins with a Title Page, which must state the full project title along with the author’s name, identification number, institutional affiliation, and the date of submission. This page serves as the official front cover of the work and should be cleanly formatted and free from numbering.

Acknowledgements

Following the title page, the report may include an Acknowledgments section. Here, the author briefly expresses appreciation to those who provided support or guidance during the project. This could include supervisors, colleagues, or organisations that contributed resources or expertise. The style should remain formal and succinct.

Summary

The Summary provides a concise overview of the entire project, enabling the reader to understand the key elements without reading the full document. It outlines the problem addressed, the main design objectives, the principal methods used, the resulting design solution, and the main findings or conclusions. Although brief, this section should stand alone as an accurate representation of the full report.

List of contents

To aid navigation, the document then presents a List of Contents, showing all major sections and subsections along with their corresponding page numbers. Additional lists of figures and tables may follow, especially if the report contains numerous diagrams, drawings, or data summaries.

Introduction

The main body of the report begins with the Introduction, which sets the context for the project. It should explain the engineering problem being addressed, the motivation behind the project, and any relevant background information. It must also outline the scope of the work and indicate how the report is structured.

Specification

Next, the Specification defines the explicit requirements that the design must meet. This includes functional requirements, performance targets, constraints, and relevant standards or regulations. These specifications form the criteria against which the final design will later be evaluated.

Design Parameters

The report then discusses the Design Parameters, describing the assumptions, material properties, operating conditions, and technical variables that inform the design process. This section includes the engineering principles, calculations, and theoretical considerations that underpin the design decisions. Every parameter should be justified and, where appropriate, referenced to respected sources.

Detailed description of design

The Detailed Description of Design is the central component of the report. This section explains the chosen design solution in depth and includes diagrams, CAD models, engineering drawings, and a thorough explanation of each component or subsystem. Supporting calculations, analysis, and simulations should demonstrate how the design satisfies the requirements established earlier. Materials selection, manufacturing considerations, and assembly details may also be included.

Design evaluation

Once the design has been fully described, a Design Evaluation assesses its performance. This involves comparing the final design against the original specifications, identifying strengths, weaknesses, and limitations, and discussing any safety, reliability, or sustainability considerations. If testing or prototyping was undertaken, results should be presented and interpreted here. The evaluation should conclude with reflections on potential improvements or future developments.

References

All external sources used in the project should be listed in the References section, formatted consistently according to a recognised academic style. Every citation within the text must correspond to an entry in this list.

Appendices

Finally, the Appendices contain supplementary material that supports the main report but is too detailed to include within the main sections. Typical appendices include full engineering calculations, raw data, risk assessments, computer code, and, importantly engineering drawings. These must include the full general assembly drawing of the design as well as complete, fully dimensioned detailed part drawings

The Technical Design Report would be the final report produced for the client, and should allow them to move forward with manufacturing.
