How do we calculate the Euler buckling load?

Following on from our previous article on evaluating the slenderness ratio in columns, we’re going to look at some other calculations we need when looking at the buckling of columns.

Euler buckling load example

Axial Resistance

For the axial resistance of a column to be satisfied, the following conditions must be met:

NEdNc, Rd≤1.0

where are:

  • NEd: design axial force (load) (kN),
  • Nc,Rd: design axial load-bearing capacity (resistance) (kN).

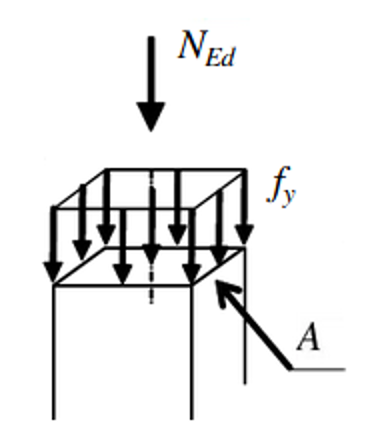

Axial load–bearing capacity represents the plastic resistance of column cross-section to axial forces. The plastic resistance of a column is shown by the following expression:

Nc,Rd=A x fyM0

Where are:

  • A – cross-section area (m2),
  • fy – steel yield strength (Pa),
  • γM0 – partial safety factor for material (γM0 = 1.1 for steel).

Let’s look at an example so we can see how this works.  Imagine a 3m long column with one end pinned and the other fixed.  It has a cross-section area A=3.125×10-3 m2  and it’s loaded by design axial compression force NEd = 500 kN.

If we want to calculate the column plastic resistance for steel grade S235 and E = 210 x 109 Pa.

Nc,Rd=A·fyM0=0.003125 m2 x 235 MPa1.1=667.6 kN

NEdNc,Rd=500 kN667.6 kN=0.75<1.0-OK

Buckling load-bearing capacity of steel columns

Buckling is the loss of stability of any slender structural member due to an excessive axial compressive load. Thus, for example, a column, placed vertically on the ground and pressed from above by a compressive force, buckles now when the force increases beyond a certain limit (Euler’s critical force). The intensity of the critical force at which buckling occurs depends on the slenderness of the column, i.e., the method of securing its ends, its geometric properties, and the mechanical properties of the material from which the column is made.

Equation for elastic column buckling (Euler’s critical force) is given as follows:

Ncr=2EILe2

Where are:

  • Le – effective length of the column (m),
  • I – moment of inertia (m4),
  • E – Young modulus of elasticity (Pa).

Let’s look an example of how we can use this calculation.  Imagine another 3m long column with one end pinned and the other fixed.  It has a a moment of inertia I=4.75026×10-5 m4. Calculate the column buckling resistance for E=210 x 109 Pa.
Le=KL=0.73.0 m=2.1 m

Ncr=2EILe2=3.142 x 210 x 109 Pa x 4.75026 x 10-5m42.1m2=22302.7 kN

Keep an eye out for future courses on different types of buckling and various calculations around buckling in columns.
